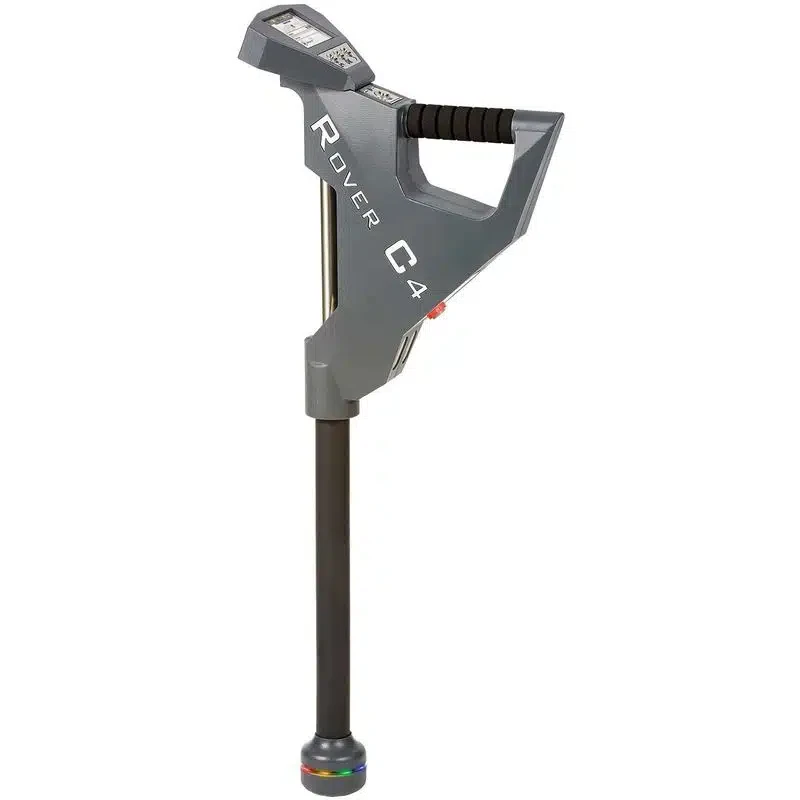

OKM ROVER C4 3D GROUND SCANNER WITH WINDOWS NOTEBOOK

Ground Scanner Rover C4 is an easy-to-use multi-purpose treasure and cavity detector. By using the modes Ground Scan and Mineral Scan, the detector finds lost treasures such as coins, rings and jewelry as well as cavity structures like tunnels, caves, chambers and graves. The measurement data are displayed graphically via Visualizer 3D Software.

The Rover C4 is controlled via color touchscreen with multilingual user interface. This allows easy operation and configuration of the metal detector. The detector can also be operated using alternative buttons and the brightness of the screen can be individually adjusted.

The detector is also equipped with an innovative LED orbit, that indicates underground targets visually. While scanning the ground this LED sphere emits colored light to visualize detected metals and cavities immediately.

Ground Scan allows to create 3D images of the underground and find buried coins, rings, jewelry, and similar treasure objects and artifacts. Mineral Scan is used to locate natural gold deposits.

One of the most versatile operating modes in our 3D metal detectors is Ground Scan. This function is used to scan a rectangular area to obtain measuring data from underground structures and objects.

By walking over the field in a certain manner (Parallel or Zig-Zag) the treasure hunter scans the area of interest. With all recorded data the Visualizer 3D Software creates a 3D image that represents all detected underground objects. Thus, you know where and how deep the located treasures are in the ground.

All data that has been recorded with the Rover C4 metal detector during a ground scan or mineral scan can be transferred to the Visualizer 3D Software to process a detailed three-dimensional analysis.

FEATURES

• Bestseller: 3D ground scanner and metal detector
• Measuring Depth: With this technology customers found objects up to 21 m (69 ft) deep
• Use cases: treasure hunting, natural gold prospection
• Operating modes: Ground Scan, Pinpointer, Magnetometer, Mineral Scan
• Detectable objects: natural gold minerals, treasure chests, jewelry, militaria
• 3D Visualization
• 3D Ground Scan
• Colour display / Touchscreen
• Exchangeable probes
• GST / EMSR
• Internal memory
• LED lighting
• LED Orbit
• Live Sound
• Mineral Scan
• Multilingual operation
• Rechargeable high-capacity battery
• Speaker
• Wireless technology

CONTROL UNIT SPECIFICATIONS

• Dimensions (H x W x D): 390 x 300 x 140 mm
• Weight: about 1.5 kg
• Input voltage (max.): 11 – 13 V DC / 6 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Air humidity: 5% – 75%

STANDARD PROBE SPECIFICATIONS

• Weight: 0.4 kg
• Length: 445 mm
• Diameter tube / LED Orbit: 35 mm / 65 mm
• Technology: SCMI-15-D

SUPER SENSOR SPECIFICATIONS

• Weight: 0.9 kg
• Length: 960 mm
• Diameter tube / LED Orbit: 50 mm / 65 mm
• Technology: SCMI-15-D

DATA TRANSMISSION SPECIFICATIONS

• Technology: Bluetooth
• Frequency: 2.4 – 2.4835 GHz
• Maximum Transfer Rate: 1 Mbps
• Receiving Sensitivity: –85 dBm
• Maximum Range: approx. 10 m

COMPUTER MINIMUM REQUIREMENTS

• CD-ROM drive: minimum 4x
• Interface (Data transmission): USB
• Free disk space: minimum 50 MB
• Working memory (RAM): minimum 256 MB
• Graphic card: minimum 128 MB, OpenGL-compatible
• Processor: minimum 1.2 GHz
• Operating system: Windows Vista, Windows 7, Windows 8, Windows 10

USES

• Archaeology
• Cavity Detection
• Explosive Ordnance Disposal Services
• Militaria Detection
• Natural Gold Prospection
• Treasure Hunting
• OKM Search Services

PACKAGE INCLUDES

• 1x Control unit
• 1x Standard Probe with LED Orbit
• 1x Super Sensor with LED Orbit
• 1x Windows Tablet PC
• 1x Software Visualizer 3D Studio Standard Edition
• 1x Bluetooth headphones
• 1x Power Pack with charger and travel adapter
• 1x USB Bluetooth dongle
• 1x Waterproof and shock resistant Pelican case
• 1x Carrying tube
• 1x Quick Start Guide
