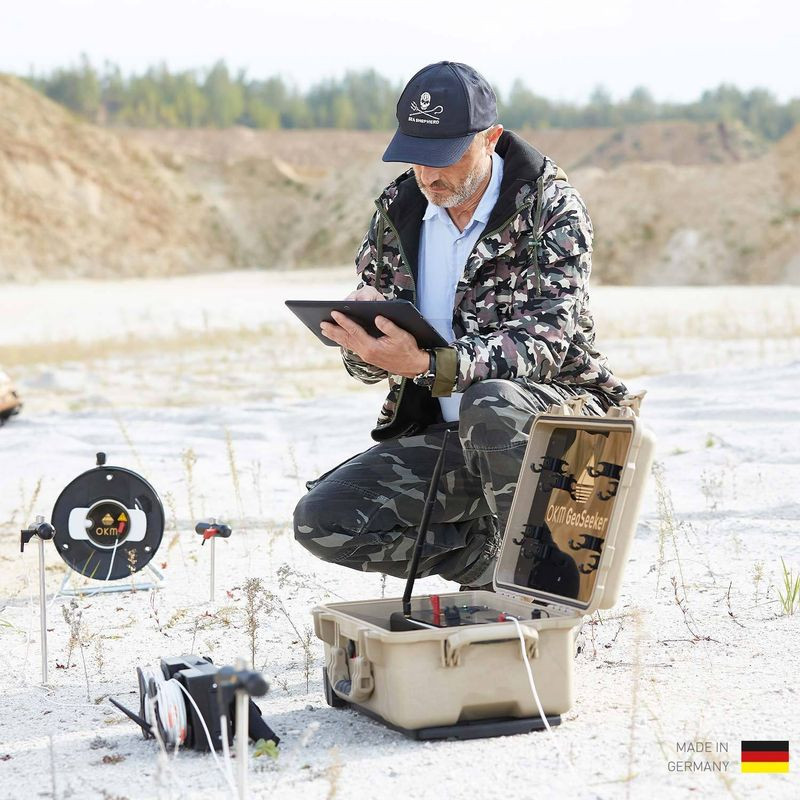

OKM GEOSEEKER 3D GEOELECTRIC WATER & CAVITY DETECTOR WITH TABLET

• Geoelectric water and cavity detector: Determines the ground resistance up to a depth of 250m and visualizes the measured values in 3D
• Depth: Customers found water up to 250 meters
• Use cases: water detection, cavity detection, geotechnical engineering
• Operating modes: Geoelectrical scan
• Detectable objects: water deposits, water-bearing gravel, cavities
• 3D Visualization
• Colour display / Touchscreen
• Geoelectrical measuring procedure
• Internal memory
• Multilingual operation
• Rechargeable high-capacity battery
• Wireless technology

VOLTAGE CABLE DRUMS (Ø 120 MM) SPECIFICATIONS

• Dimensions (H x W x D): 360 x 290 x 200 mm
• Weight: 6.5 kg
• Cable length: 255 m
• Markers: 15

POWER CABLE DRUMS (Ø 290 MM) SPECIFICATIONS

• Dimensions (H x W x D): 120 x 120 x 45 mm
• Weight: 0.65 kg
• Cable length: 26 m
• Markers: 25

CONTROLLER (RECEIVING UNIT) SPECIFICATIONS

• Dimensions (H x W x D): 130 x 270 x 110 mm
• Weight: 0.6 kg / 2.1 kg (with mounted cable reers and batteries)
• Sample rate: 4096 Hz (64 times oversampling of a 512 samples mean value)
• Operating time: min. 16 hours (charged batteries)
• Charging Time: 3 h / max. 5 h (empty batteries)
• CPU: 80 MHz Cortex M3
• ADC: 16 bit
• Communication with Tablet PC: WLAN-Accesspoint, 2.4 GHz band, channel 6, WPA2
• Communication with Power Box: 2.4 GHz band, on-demand, proprietary
• Effective Range: –1400 to +1400 mV
• Measurement Period per Scan Point: min. 16 seconds
• Power Supply (8 AA batteries): 8 – 14 V DC
• Input (for Charger): 12 V DC / 1.5 A
• Input Resistance (static): approx. 12 MΩ

POWER BOX (SENDING UNIT) SPECIFICATIONS

• Dimensions (H x W x D): 230 x 550 x 360 mm
• Weight: 15.8 kg / 18 kg (with mounted Electrodes)
• Operating time: 100 h (min. Power) / 40 h (average Power) / 8 h (max. Power)
• Charging Time: max. 8 hours
• Output: max. 390 V / 0.5 A / 20 W
• Communication with Controller: 2.4 GHz band, on-demand, proprietary
• Input (for Charger): 24 V DC / 2 A
• Internal Power Supply: Lead Acid Battery (2 x 12 V, 10 Ah)

ELECTRODES SPECIFICATIONS

• Dimensions (H x W x D): 440 x 120 x 35 mm
• Weight: 0.52 kg

USES

• Agriculture
• Archaeology
• Cavity Detection
• Geotechnical Engineering
• Water Detection / Well Building
• OKM Search Services

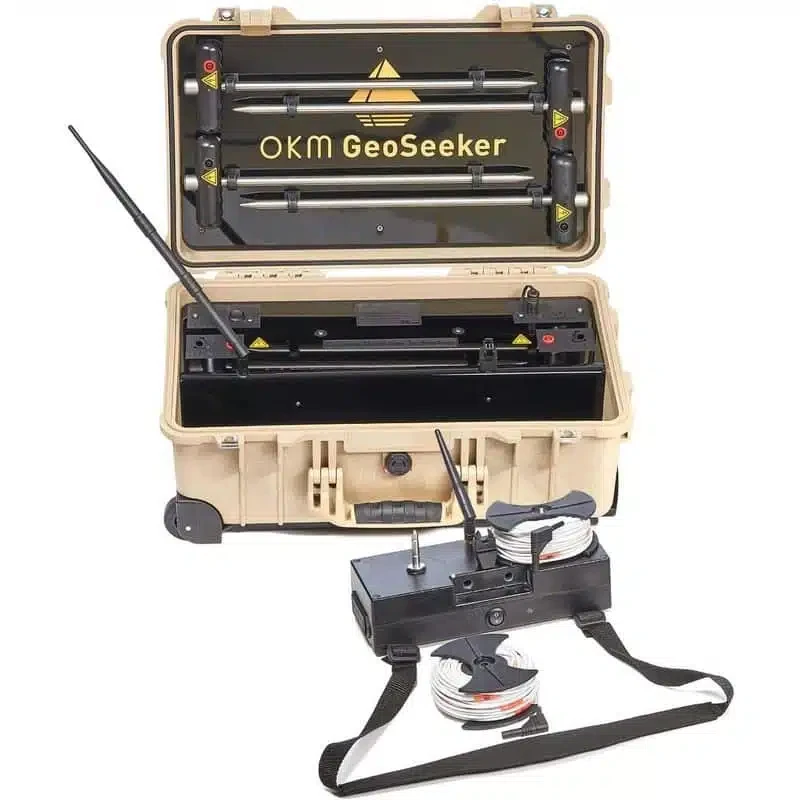

PACKAGE INCLUDES

• 1x Controller
• 1x Android Tablet PC
• 1x Tablet PC mount
• 1x Waterproof and shock resistant Pelican case
• 8x AA battery 1.5 V
• 1x Power Pack with charger and travel adapter
• 1x Power Box
• 1x Charger for controller
• 1x Charger for Power Box
• 2x Power cable drum (Ø 290 mm)
• 2x Voltage cable drum (Ø 120 mm)
• 4x Electrode
• 2x Connecting Cable (2 m)
• 1x User’s manual
