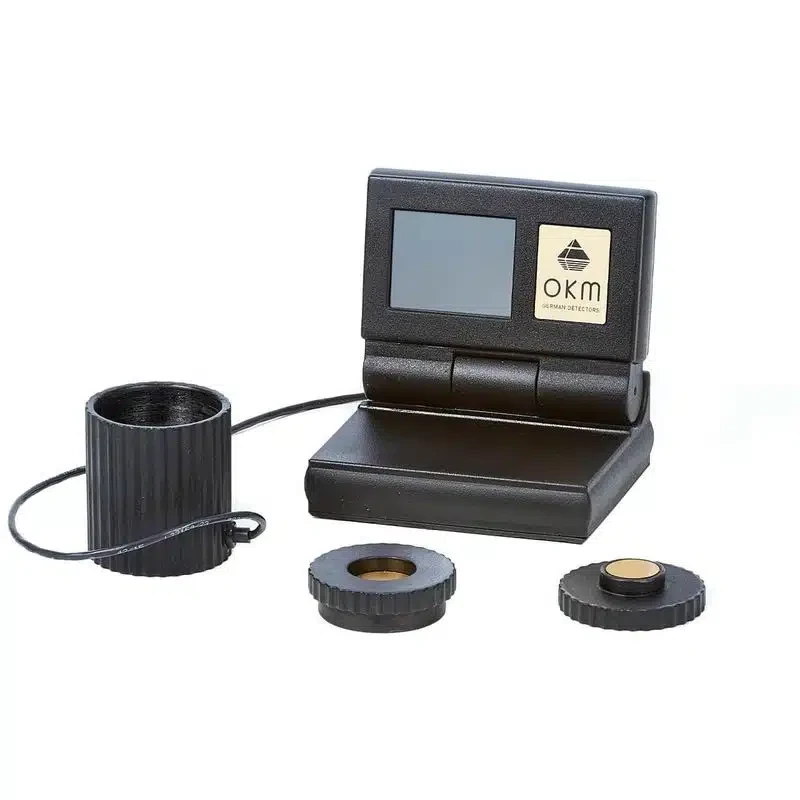

OKM GOLD LABOR AU 79 GOLD DETECTOR

Gold Labor Au 79 is a supportive tool for gold panning to determine the gold content of soil samples. Using this gold labor helps prospectors to find reasonable places for gold panning.

The Gold Labor Au 79 gives you information about the gold content of your soil sample in grams per ton. The higher this value, the more gold is available in the underground soil.

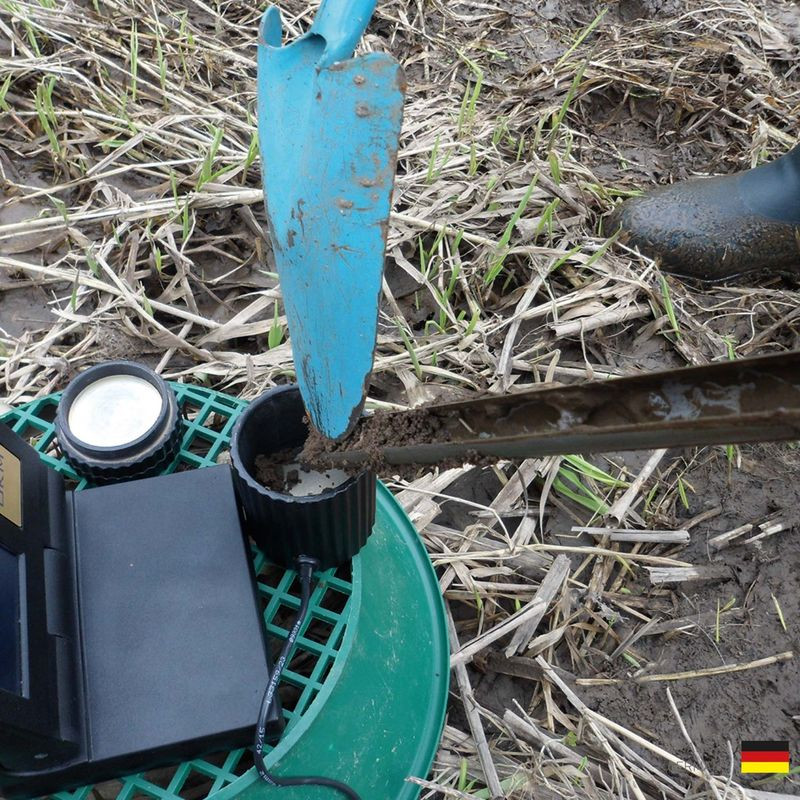

Fill a soil sample into the measuring cup of the Gold Labor Au 79, start the measurement and get the gold content of the soil. Repeat this with several samples to know if it is worth to start the gold panning process.

All steps are visually represented on the color display of the control unit. Thus, you will be guided step by step through the whole measuring procedure. The built-in battery lasts for approx. 5 hours which corresponds to approx. 600 measurements. The handling of this gold detector is very easy.

If a reasonable place with enough gold content has been detected, the experienced gold seeker, prospector or miner can get ready for the gold panning process to get the gold out of the ground. Find additional information in our blog post about gold panning.

FEATURES

• Supportive: Tool for gold panning to determine the gold content of soil samples in general. Using this gold detector helps to find reasonable places for gold panning.
• Detectable objects: gold flitters, natural gold minerals
• Colour display / Touchscreen
• Rechargeable high-capacity battery

CONTROL UNIT SPECIFICATIONS

• Dimensions (H x W x D): 135 x 120 x 55 mm / Ø 65 x 90 mm
• Weight: 660 g / 230 g (Main unit / Measuring cup)
• Processor / Main CPU: Atmega2560, 8-bit, 16 MHz
• Display: 2.8″ TFT, Touchscreen, Colour
• Operating temperature: 5°C – 40°C
• Storage temperature: –20°C – 60°C
• Waterproof: No (Measuring cup Yes)
• Voltage: 7.2 V DC (internal battery)
• Operating time: approx. 5 h (corresponds to approx. 600 measurements)
• Air humidity: 5% – 95%
• Charging Time: approx. 3 h
• Measuring unit: Electrolysis-free segmented two-core spiral-coil

USES

• Natural Gold Prospection
• OKM Search Services

PACKAGE INCLUDES

• 1x Control unit
• 1x Measuring Cup
• 1x Charger for control unit
• 1x Travel adapter
• 1x User’s manual
