Inhouse product
Specifications:

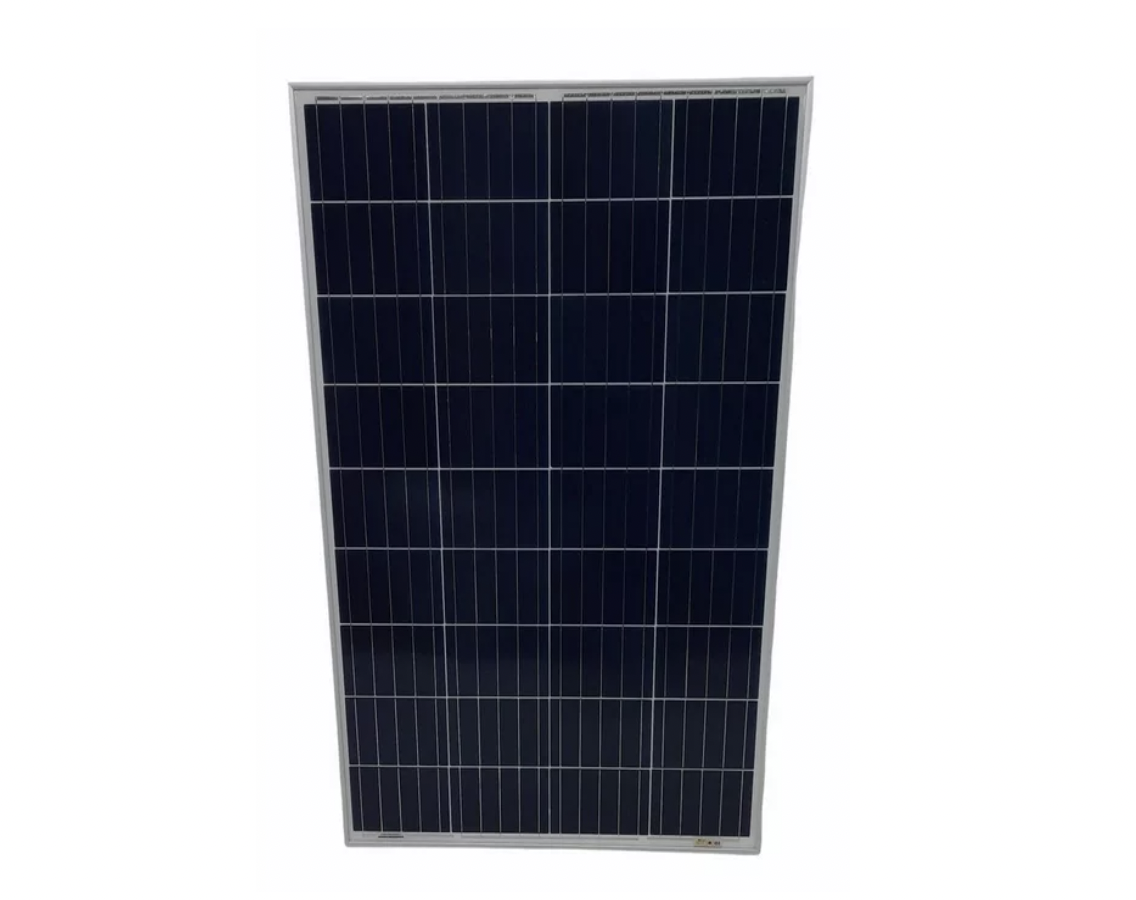

- Model: ASL 100-18-P
- Rated Maximum Power (pmax) (W) :100
- Tolerance (Tol) (%) :0±3
- Voltage at Pmax (Vmp) (V) :18.1
- Current at Pmax (Imp) (A) :5.53
- Open - Circuit Voltage (Voc) (V) :22.1
- Shot - Circuit Current (Isc) (A) :5.88
- Dimensions (mm) :1000x670x30
- Maximum System Voltage (VDC) :1000
- Application Class :A
- Mechanical load tested (Pa) :2400
- Weight (Kg) :11
- Cell Technology Poly-SI
- 5BB Cell
- All technical data at standard test condition AM 1.5 E=1000W/m² TC=25ºC
Warning
Electrical Hazard
This unit produces dc electricity
When exposed to light, cover glass before removing terminal junction box lid
What's in the box
1 x Solar Panel 100W
