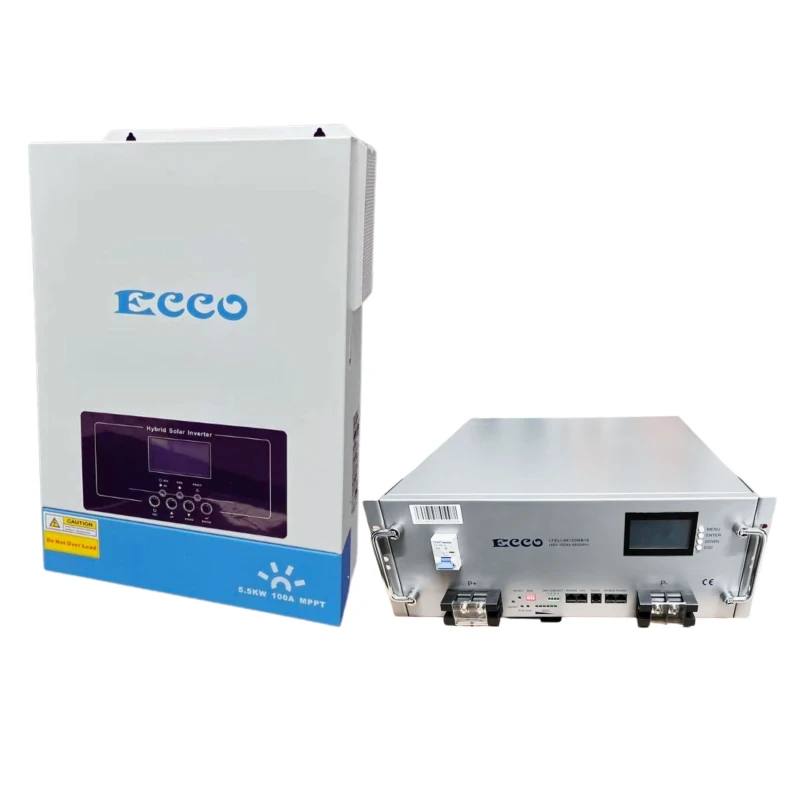

ECCO 5.5KW 48V 100A MPPT Hybrid Solar Inverter with 48V/100ah Lithium Battery

Output Power Factor 1 - High PV Input Voltage Range (120VDC - 500VDC) - Built-in 100A MPPT Solar Controller - Supports Multiple Output Priority: UTL, SOL, SBU, SUB - Parallel Operation with Up to 12 units (Parallel Version) - Supports Parallel Operation in Single Phase/ 3 Phase (Parallel Version) - Supports Wireless Parallel, Without Extra Sharing Current Cable - RS485 Communication for BMS - Wifi Monitoring - Battery Equalization Function to Optimise Battery Performance and Extended Lifecycle Specifications:- Inverter Mode - Rated Power: 5500VA / 5500W - DC Input: 48VDC, 127A - AC Output: 230VAC, 50/60Hz, 23.9A AC Charger Mode - AC Input: 230VAC, 50/60Hz, 40A - DC Output: 54VDC - Max. Charge Current(AC): 60A Default 30A - Max. Charge Current(PV+AC): 100A - AC Output: 230VAC, 50/60Hz, 23.9A Solar Charge Mode - Max. PV Array Power: 5500W - Min. Solar Voltage: 120VDC - Max. Solar Voltage (VOC): 500VDC - Max. MPPT Charge Current: 100A Ingress Protection: IP21 (Indoor Use) Dimensions ; 38 x 55 x 20 cm Weight : 9.65kg Battery Specs LFEI-48100MB16 48V 100AH Rated Capacity 100ah With Display Screen Intra system Balancing Flame retardent Automatic Over Charge Protection 20 year Design Life IP31 Class 19" std cabinet or can be wall mounted It is recomended to use ECCO Batteries and Solar Panels for Quality Garanteed Results. Important Note: This product requires installation by a qualified PV installer, the PV installer must be able to issue a Certificate of Compliance. This is to ensure that the installation is safe and correct, as well as, within the scope of relevant regulations. What's in the box 1 x ECCO 5.5KW Inverter 1 x Wifi Monitoring Module 3 x Connecting Cables 1 x User Guide
