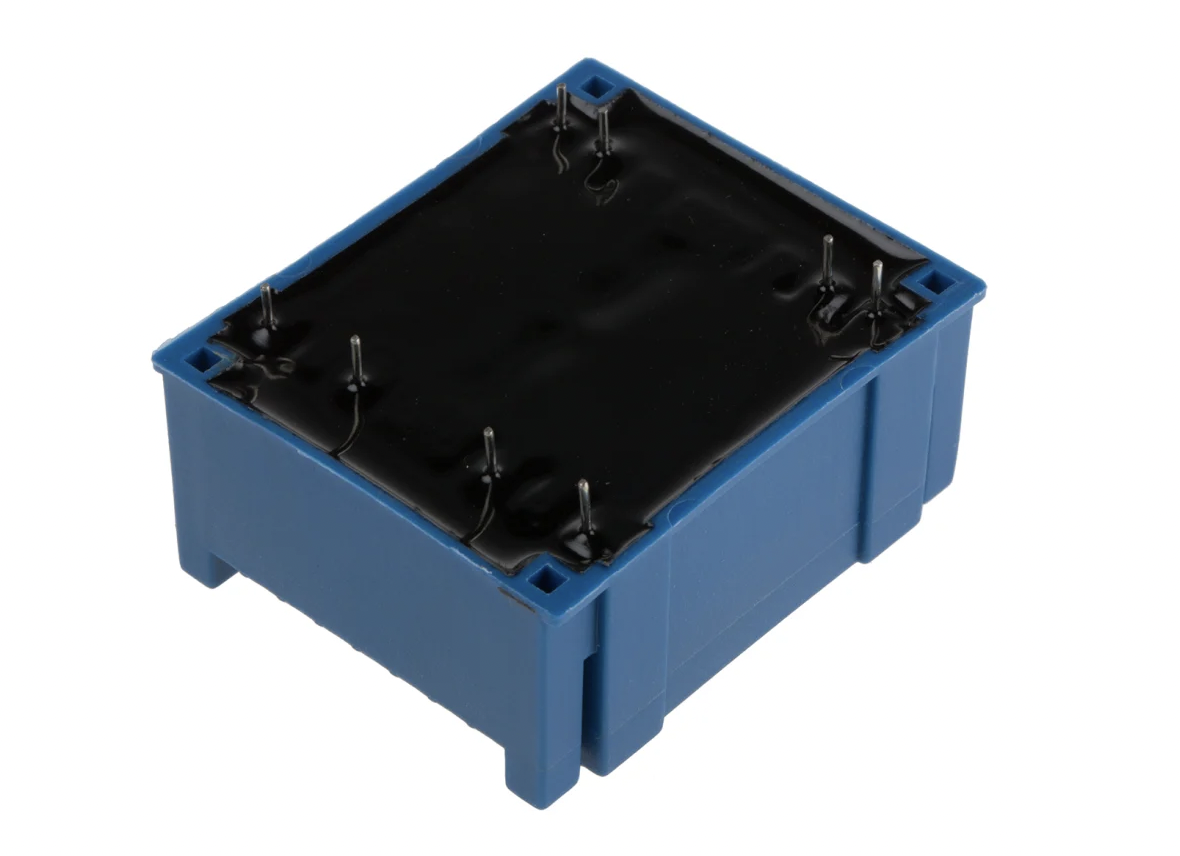

RS PRO 2 x 6V ac 2 Output PCB Mount PCB Transformer, 6VA

(0 reviews)
Estimate Shipping Time: 5 Days

Inhouse product


Price
R1,078.00 /pc
Quantity
(18 available)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
RS Pro PCB low profile transformers are low voltage transformers with a twin 115 V ac 50/60 Hz primary winding. These PCB transformers are compact and low height, have independent secondary windings suitable for series/ parallel connection to give output voltage and current options. The transformers are 100% electrical and flash tested, incorporate two compartment bobbins, high efficiency and low temperature rise, low interwinding capacity and low radiated noise.


Specification

Attribute
Value
Secondary Voltage Rating2 x 6V ac
Power Rating6VA
Primary Voltage Rating115 → 230V ac
Number of Outputs2
Length53mm
Width44mm
Depth23mm
Dimensions53 x 44 x 23mm
Weight185g
Mounting TypePCB Mount
Maximum Temperature+130°C
Minimum Operating Frequency50Hz
Maximum Operating Frequency60Hz
