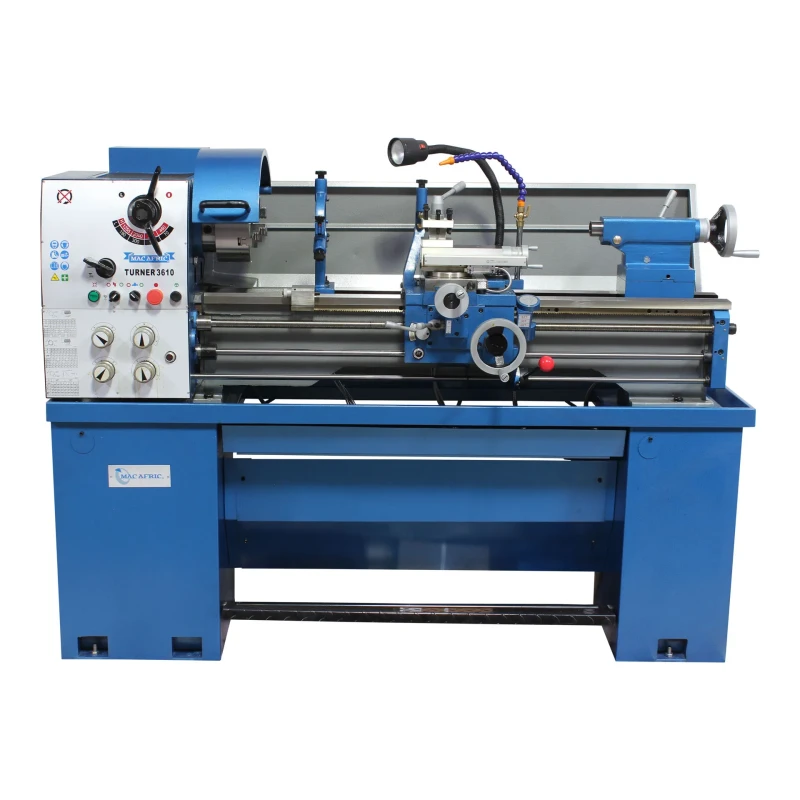

MAC AFRIC 1 M Tool Room Metal Turning Lathe (With D.R.O)

(0 reviews)

Inhouse product


Price
R105,950.00 /pc
Quantity
(10 available)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
Power Output
1.5 KW (2 HP)
Voltage
230 V
Frequency
50 HZ
Max. Swing Over Bed
356 MM
Max. Swing Over Cross Slide
220 MM
Max. Swing Over Gap
506 MM
Distance Between Centres
1 000 MM (39" IN)
Width Of Bed
206 MM
Spindle Bore
38 MM
Taper Of Spindle Bore
MT 5
Range of Spindle Speeds
45 - 1 800 RPM
Diameter Of Tailstock Quill
32 MM
Max. Travel of Tailstock Quill
100 MM
Taper Of Tail Stock
MT 3
Metric Threads Can be Cut
0.45 - 7.5 MM
Imperial Threads Can be Cut
4 - 112 TPI
Range of Longitudinal Feeds
0.052 - 1.392 MM/REV
Range Of Cross Feeds
0.014 - 0.380 MM/REV
Gross Weight
950 KG
Max. Rotatory Angle of Tool Post
NA
Tool Slide Travel
NA
Cutting Tool Max Section
16 x 16 MM
Center Height
166 MM
Bed Height
290 MM
Cam Lock System
D1 - 4
Compound Slide Travel
95 MM
Feed Rod Diameter
19 MM
