Female 9 Pin D-sub Unterminated Serial Cable, 2m PVC

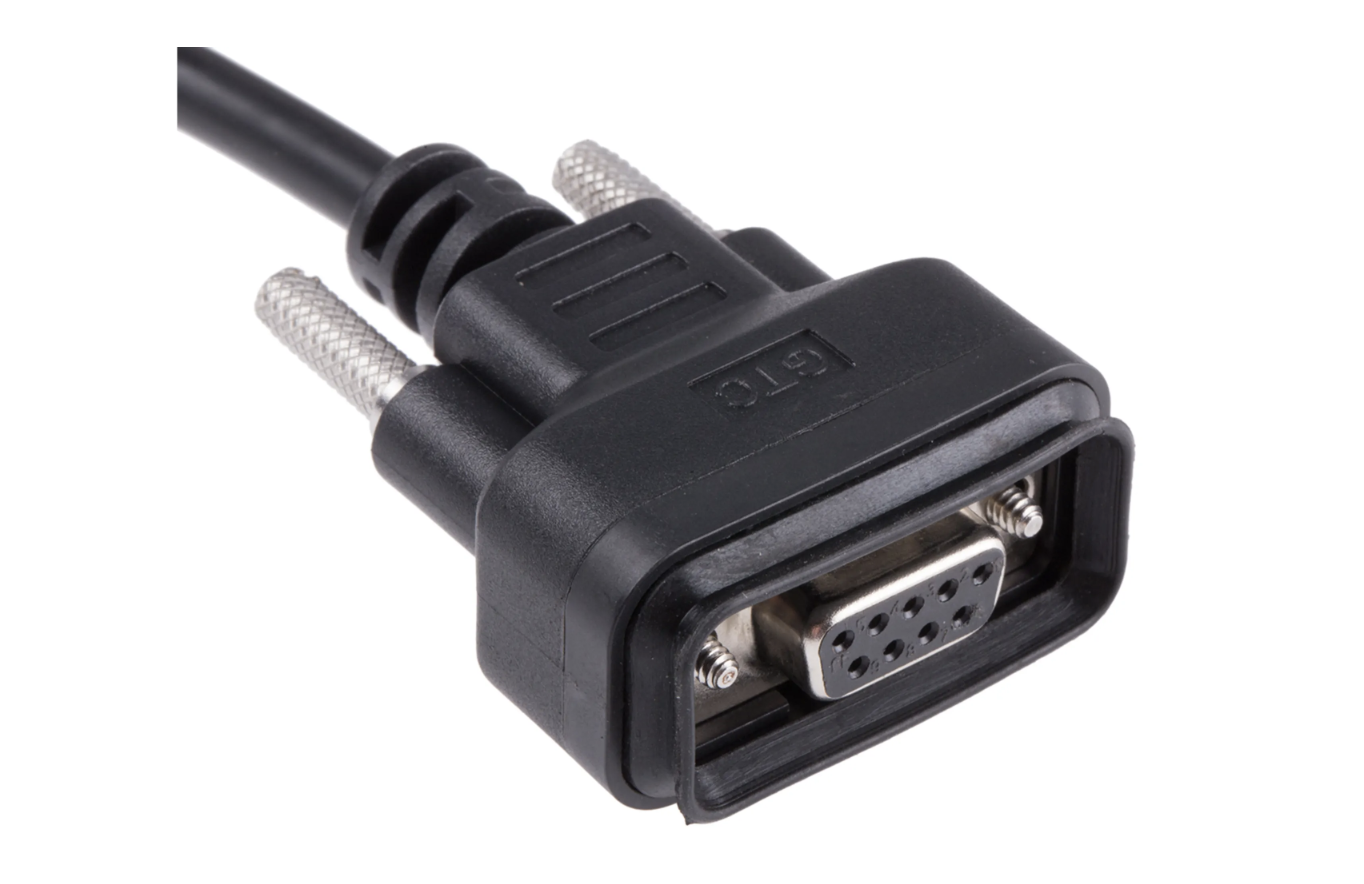

This cable assembly unit includes a two-metre-long cable terminated with a nine-contact female D-sub socket. The rugged PA66 Polyamide (PA) cable end housing ensure excellent strength and resistance to external factors.
The product has an IP67 (Ingress Protection) rating, which means it's protected against dust and sand as well as temporary immersion in water, so you can be sure your cables will be sheltered from external factors and accidental leaks. The socket shell is made from nickel-plated cold-rolled steel to guarantee resistance to wear and corrosion. Its gaskets and rubber pads add sealing for extra protection.
D-sub connectors are commonly used in industrial, commercial and computer applications, creating secure connections between devices to transfer power or information. This product complies with Restriction of Hazardous Substances (RoHS) standards, which guarantees it includes only minimal amounts of any harmful materials.

• Serial cable assembly type
• Connector A is a female D-sub connector
• Current rating of 5 mA
• Length of 2 m
• Nine populated ways
• PVC (polyvinyl chloride) outer sheath material
• GTC sealed series
• Black sheath colour
• Aluminium foil shielding
• Strand sizes of 24 to 20 AWG (American Wire Gauge)
• Voltage rating of 500 V DC
