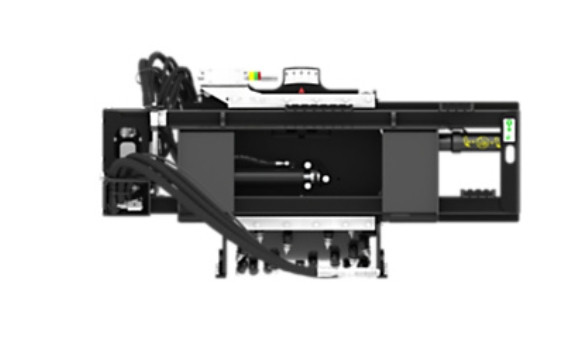

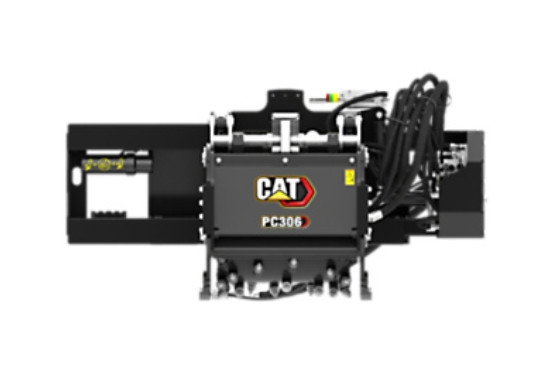

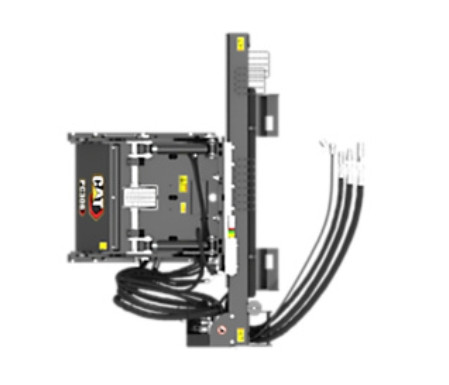

Cat® Cold Planer 529-5790: PC306

High speed drum and conical bits quickly remove asphalt and concrete prior to resurfacing.

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.

• Working Width: 23.6 in

• Maximum Cutting Depth: 6.7 in

• Required Hydraulics: High Flow

• Overall Width: 73.1 in

• Overall Length: 49.1 in

• Overall Height: 36.6 in

• Weight: 2107.6 lb

• Optimal Hydraulic Flow: 98-125 L/min (26-33 gpm)

• Optimal Hydraulic Pressure: 230-280 bar (3300-4000 psi)

• Drum Speed: 149 rpm

• Optional Drum Widths/Depths: 80/200, 150/200, 300/200, 450/200, 600/170 mm (3/8, 6/8, 12/8, 18/8, 24/7 in)

• Tilt Angle Range +/-: 8 degrees

• Side Shift Travel: 29.5 in

• Conical Bits: 54

• Standard Bit Type: All Purpose

• Working Width: 600 mm (23.6 in) - 800 mm (31.4 in)

• Maximum Cut Depth: 160 mm (2.6 in) - 200 mm (7.8 in)

• Compatibility: Compact Wheel Loaders,Skid Steer Loaders,Compact Track Loaders
