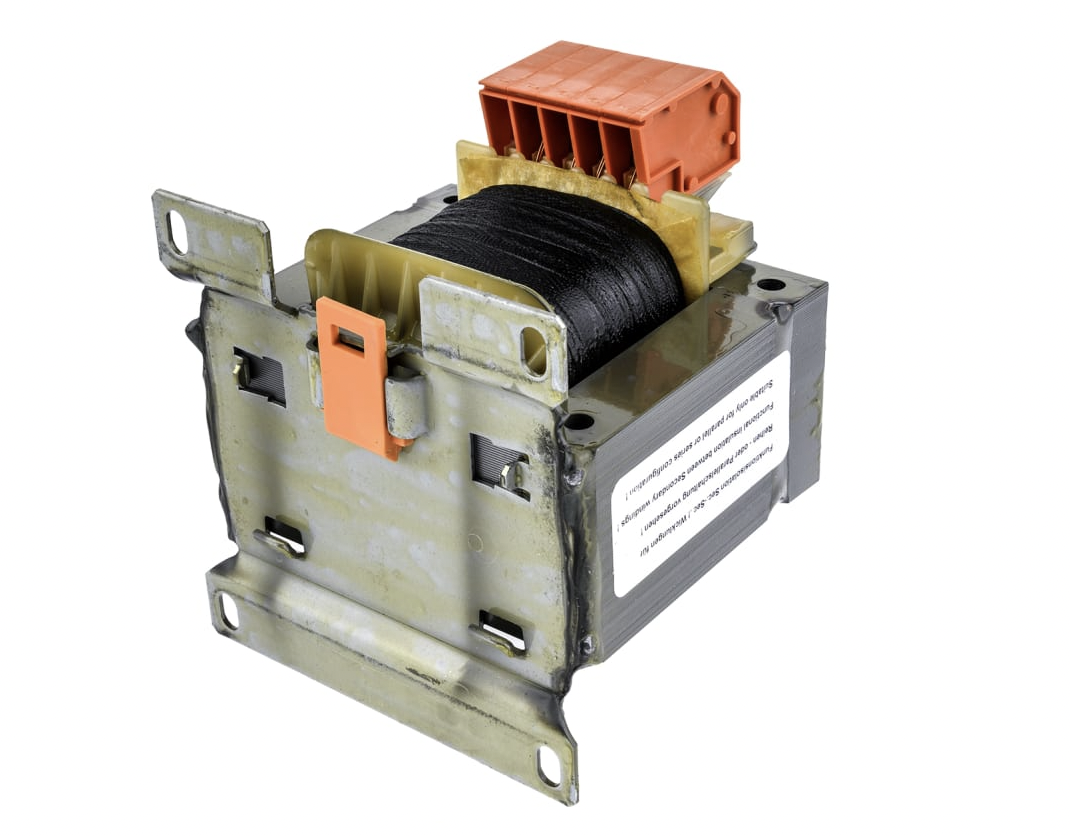

Block 160VA 2 Output Chassis Mounting Transformer, 2 x 115V ac

(0 reviews)
Estimate Shipping Time: 5 Days

Inhouse product


Price
R4,050.00 /pc
Quantity
(55 available)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
Safety isolating and isolating control transformers
Twin secondary winding for series or parallel connection
63,100,160 and 250VA transformers can be mounted on standard 35mm DIN rail
All units have 4 hole panel mount fixings
Easy installation 4mm² cage clamp terminals
Insulation catagory Class B

Primary connections 0V, -15V, +15V, 230V, 400V. The + 15 and -15V allows you to offset the primary Voltage by 15V
Low inrush current
High efficiency, low regulation

Standards

EN 61558, VDE0570

Approvals

UL Recognised Component for Canada & US

Approvals

UL Recognised Component for Canada & US

Standards

EN 61558, VDE0570

Specification

Attribute
Value
Primary Voltage Rating230/400V ac
Secondary Voltage Rating2 x 115V ac
Power Rating160VA
Number of Outputs2
Mounting TypeDIN Rail, Panel
Length96mm
Width96mm
Depth102mm
Dimensions96 x 104 x 102mm
Weight2.9kg
Minimum Operating Frequency50Hz
Maximum Operating Frequency60Hz
Maximum Temperature+40°C
