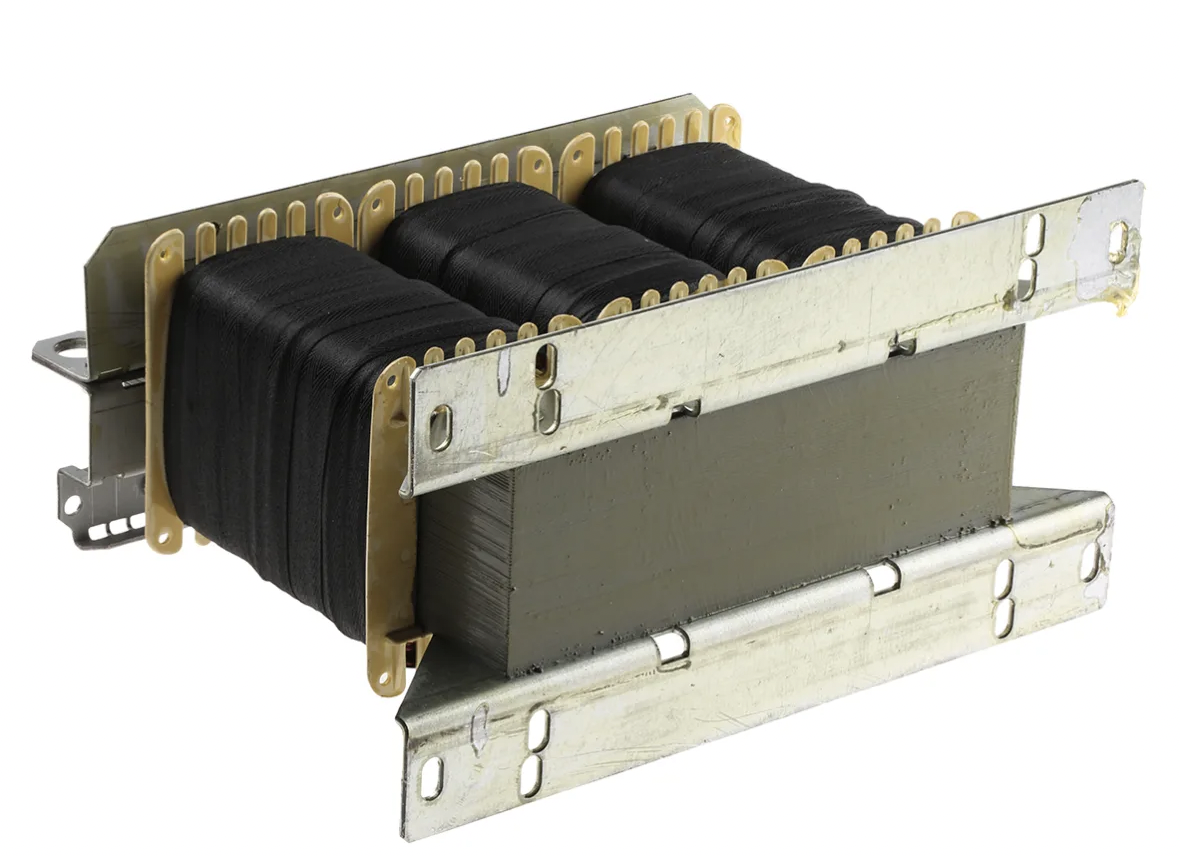

3.5kVA Open Frame Autotransformer, 220 V ac, 230 V ac Primary, 400 V ac Secondary, 3 UI 114/64 Core

(0 reviews)
Estimate Shipping Time: 5 Days

Inhouse product


Price
R19,152.00 /pc
Quantity
(13 available)
Total Price
Share

Reviews & Ratings

0 out of 5.0
(0 reviews)
There have been no reviews for this product yet.
Range of high efficiency low heat loss 3 phase auto transformers

Common input and output windings
Easy installation-mounting holes provided
Screw terminal connections
Reverse operation posible
Transformers tested to EN 61558-2-13
BLOCKIMPEX vacuum impregnation

Approvals

UL 5085-1/2 CSA 22.2

Specification

Attribute
Value
Primary Voltage Rating220 V ac, 230 V ac
Secondary Voltage Rating400 V ac
Power Rating3.5kVA
ConstructionOpen Frame
Mounting TypeChassis Mount, Floor Standing, Wall Mount
Core Type3 UI 114/64
Termination TypeScrew
Length267mm
Dimensions267 x 150 x 220mm
Width150mm
Depth220mm
Minimum Operating Frequency50Hz
Maximum Operating Frequency60Hz
Maximum Temperature+40°C
