S. No | Description of configuration | Specification |

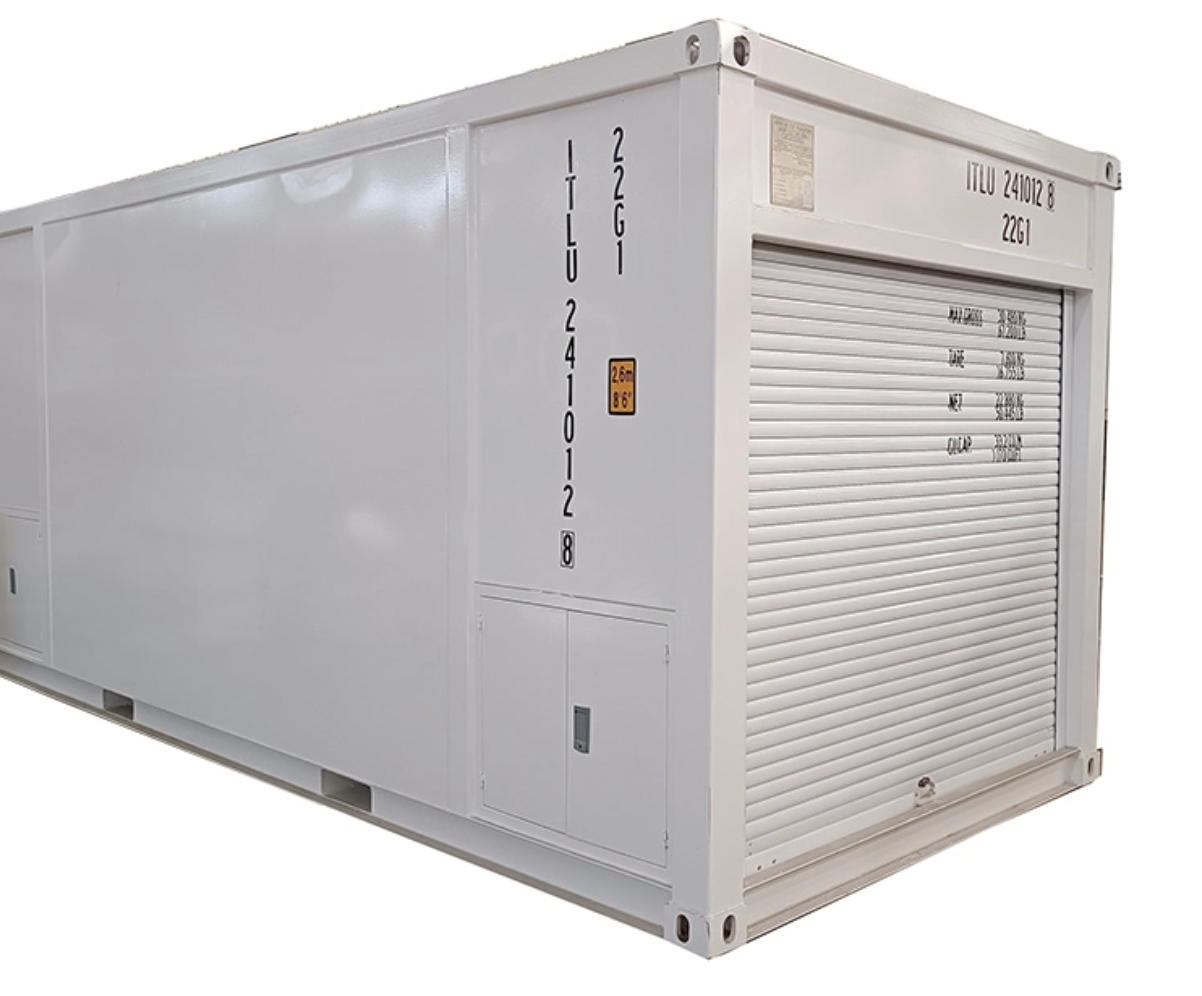

1 | Explosion-proof storage tank | Total volume 5m3-40m3. Tank steel Q235, submerged arc automatic welding process. |
2 | Lightning and static protection set | With electrostatic grounding device |
3 | Explosion proof materials | V-type explosion-proof material |

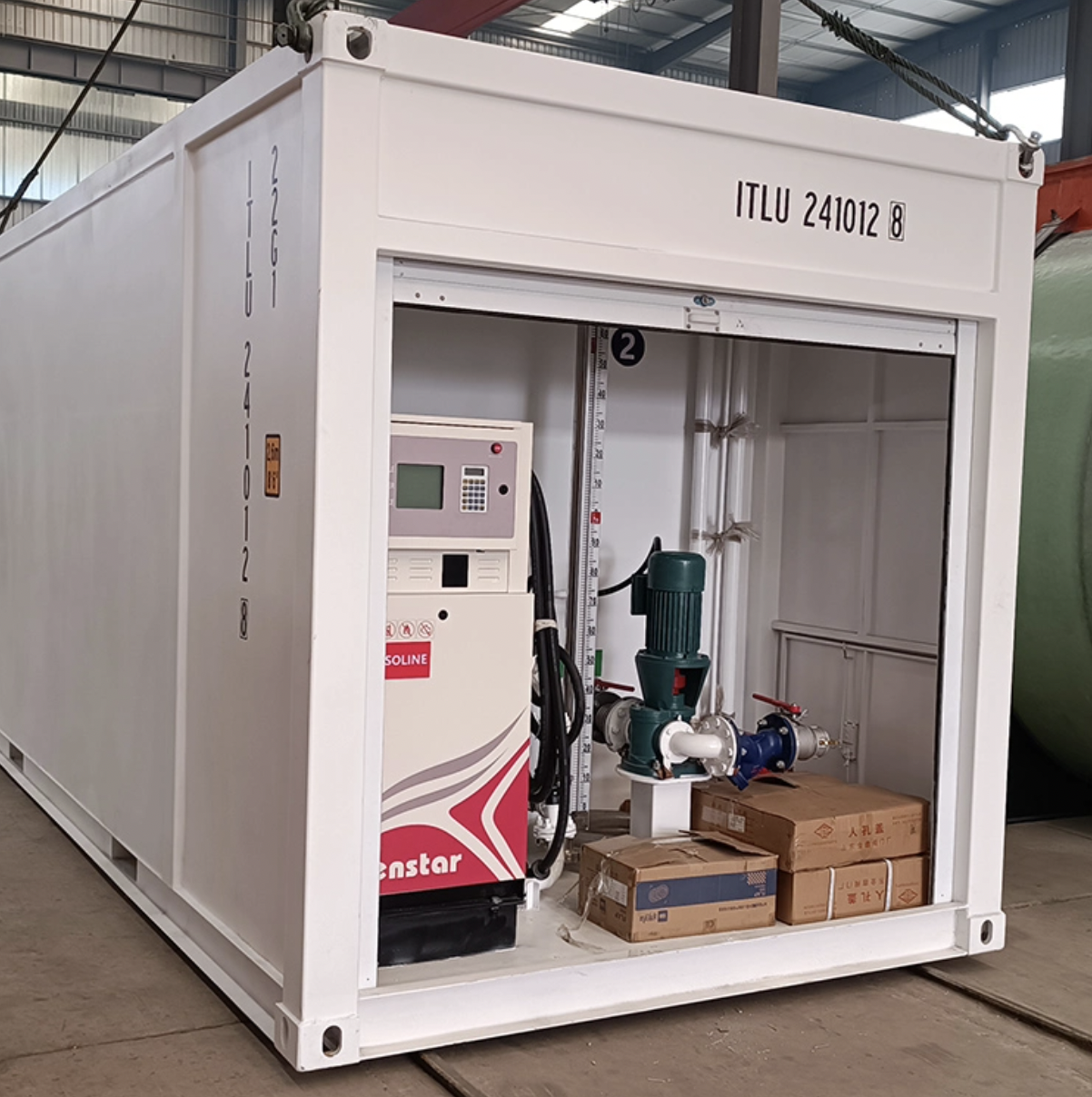

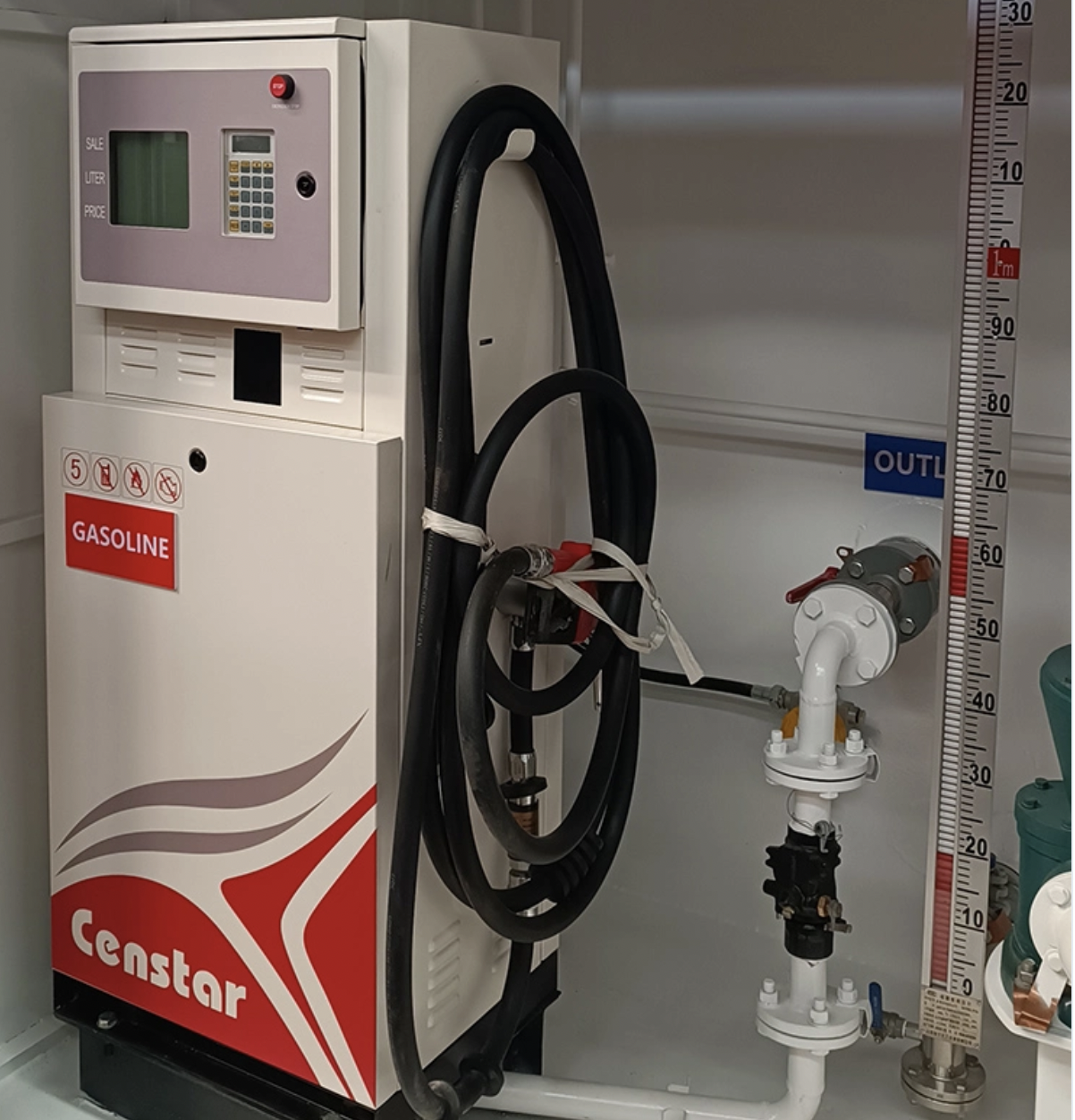

4 | Fuel dispenser | Dispenser equipped with pump and filling gun |
5 | Fuel loading system | Explosion proof fuel pump with flow rate of 38m3 / h |
7 | Liquid level measurement system | Measuring range 0.5-3m, measuring error ± 1mm, with LCD, temperature monitoring function, high liquid level alarm and low liquid level alarm. |
8 | Airtight loading system | DN80 self-sealing ring valve is adopted for quick connection of oil loading port. |
9 | Discharging system | DN40 oil outlet pipe, equipped with maintenance protection device. |
10 | Emergency cut-off device | DN40 emergency cut-off valve, normally closed, automatically cut off oil in case of fire or emergency. |
11 | Painting | The equipment is polished, derusted and degreased. With external three coats of painting: 80 micron epoxy zinc rich primer, epoxy micaceous iron midcoat, polyurethane cooling and fireproof finish. |
12 | Other configuration | Anti-static system Oil leakage detection device Manual oil measuring system Automatic fire extinguishing system Emergency pressure relief device Power supply system Anti-overflow system Lighting Filter unit Cleaning device Safety auxiliary facilities Door |
